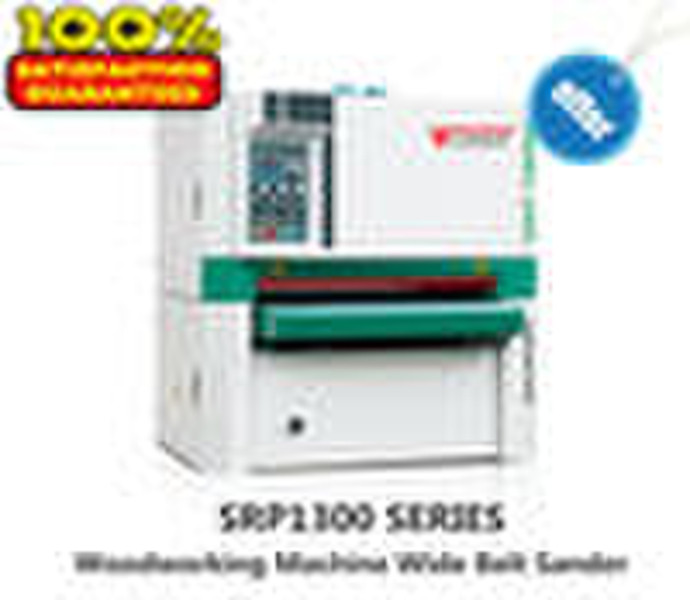

Woodworking Wide Belt Sanding Machine
original price: 10 749 USD
Valentina Wu
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | Shangahi Fuma |
| Model Number | SRP1300-1 |
Woodworking Wide Belt Sanding MachineSRP1300 SERIES Model No. SRP1300-1 SRP1300-2 Working width 401300mm 401300mm Working thickness 2.5100mm 2.5100mm Working length ≥640mm ≥530mm 1st Sanding Belt Speed 19m/s 19m/s 2nd Sanding Belt Speed 18m/s 12m/s Feed Speed 630m/min 630m/min Size of Sanding Belt(W×P) 1330×2200mm 1030×2200mm Motors Power Total motor power 63.74 kW 49.74 kW 1st head motor 37 kW 4-pole 30 kW 4-pole 2nd head motor 22 kW 4-pole 15 kW 4-pole Brush motor 0.37 kW 4-pole 0.37 kW 4-pole Feed motor 4 kW 4-pole 4 kW 4-pole Lifting motor 0.37kW 4-pole 0.37 kW 4-pole Working air pressure 0.55MPa 0.55MPa Consumption of compressed air 0.1 m3/min 0.1 m3/min Volume of sucked air 9500m3/h 9000m3/h Speed of sucked air 2530m/s 2530m/s Overall dimension(L×W×H) 2360×2030×2220mm 2360×2030×2220mm Net weight 3700kg 3500kg
Delivery terms and packaging
Packaging Detail: SHRINK FILM. Delivery Detail: 30days
Port: Shanghai port
