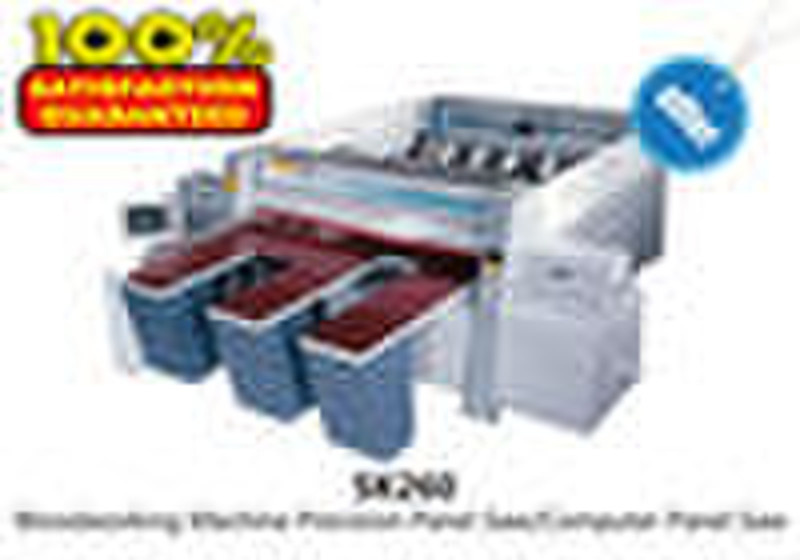

Woodworking Machine Precision Panel Saw
original price: 29 118 USD
Valentina Wu
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | Fuma |
| Model Number | SK260 |
Woodworking Precision Panel Saw/ Full automatic computer digital control panel saw SK320 PARAMETERGross weight4,500kgWorkbench length3,200mmOutline size (L x W):5,230mm x 5,500mmAir pressure6kg/cm² Voltage/frequency380V/50HzMain motor power7.5kW Tractive power1.5KWDelivery motor power1kWMax incising thickness≤80mmMax. incising length3,050mmIncising speed0-50m/minPrecision0.20mm/2,440mmAnticipate±0.3mm Structure servocontrol electric circuit Tractive mode chain Code of speed-adjusting frequency conversion Transiting rail, the spirit moves the float bead Code of transit manipulator automatism sends the feed; computer automatism fixed position Specification of major saw: outer D Φ350mm; inner D Φ30mm; thickness 4.4mm Specification of grooving saw: outer D Φ180mm; inner D Φ30mm; thickness 4.3-5.3mm Rotate speed main blade: approx. 5,000rpm; secondary blade: approx. 7,000rpm
Delivery terms and packaging
Packaging Detail: By shrink film and plywood packages. Delivery Detail: 30 days
Port: shanghai
